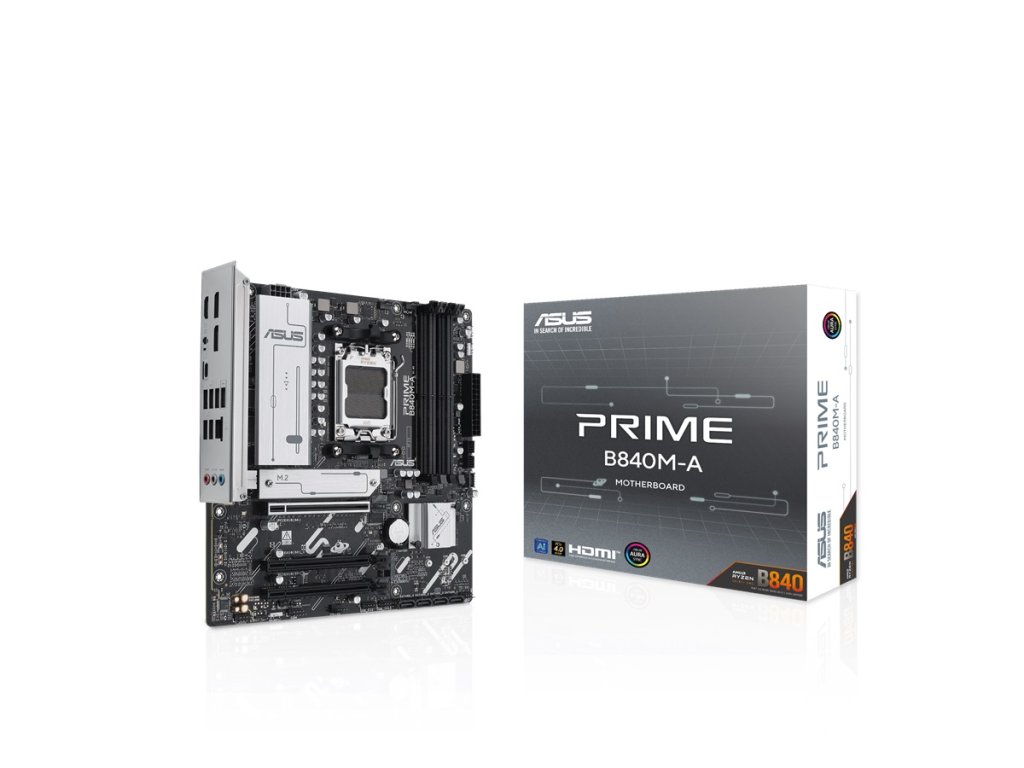

ASUS PRIME B840M-A-CSM

Podrobný popis

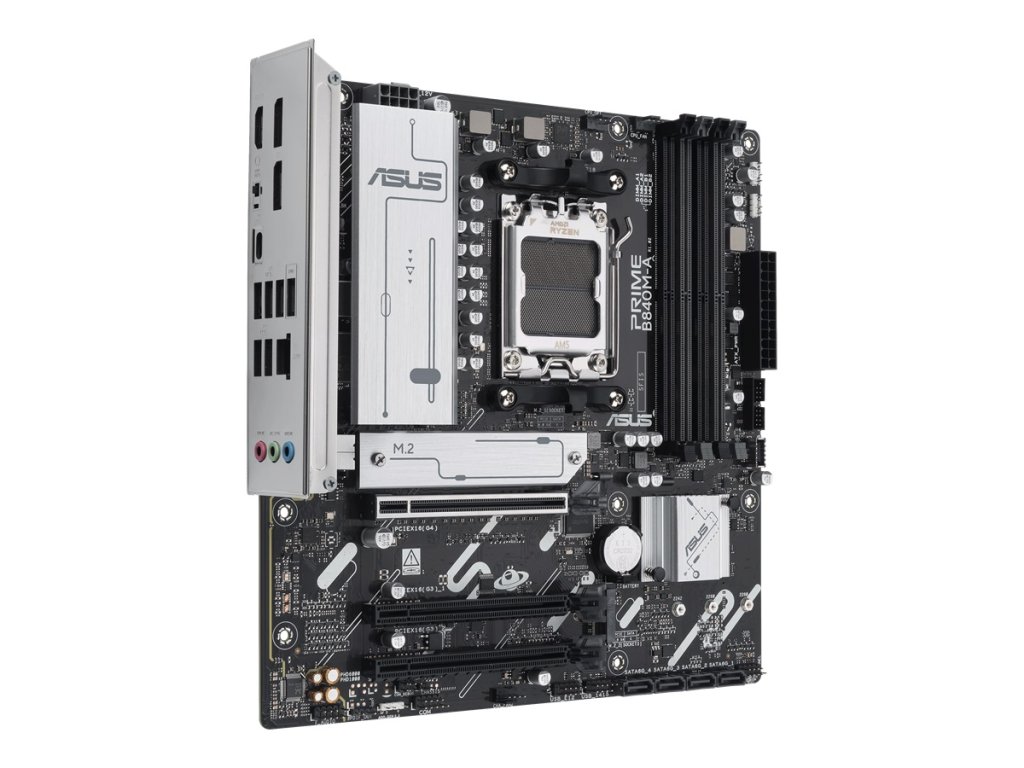

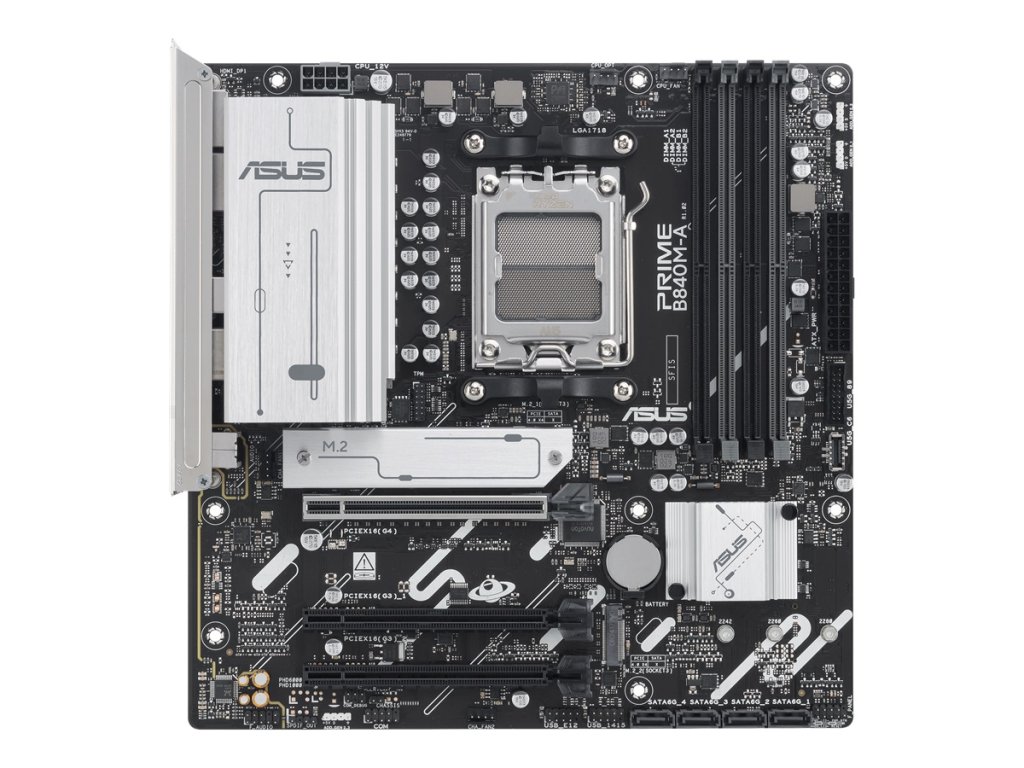

ASUS PRIME B840M-A

* mATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B840 Chipset

Paměť: 4 x DIMM slots, max. 192GB, DDR5 - Podpora až 7600+MT/s (OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnávací paměti DIMM

Grafické porty:
*2 x DisplayPort
*1 x HDMI™ port

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
*1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B840 Chipset
*2 x PCIe 3.0 x16 slots (support x1 mode)

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B840 Chipset
*M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
*4 x SATA 6Gb/s ports

Ethernet:
*1 x Realtek 2.5Gb Ethernet
*ASUS LANGuard

USB:
Zadní USB (Total 7 ports)
*2 x USB 10Gbps ports (2 x Type-A)
*1 x USB 5Gbps port (1 x USB Type-C®)
*4 x USB 2.0 ports (4 x Type-A)
Přední USB (Total 7 ports)
*1 x USB 5Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
*Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Audio Features
*Audio Shielding
*Premium audio capacitors
*Dedicated audio PCB layers

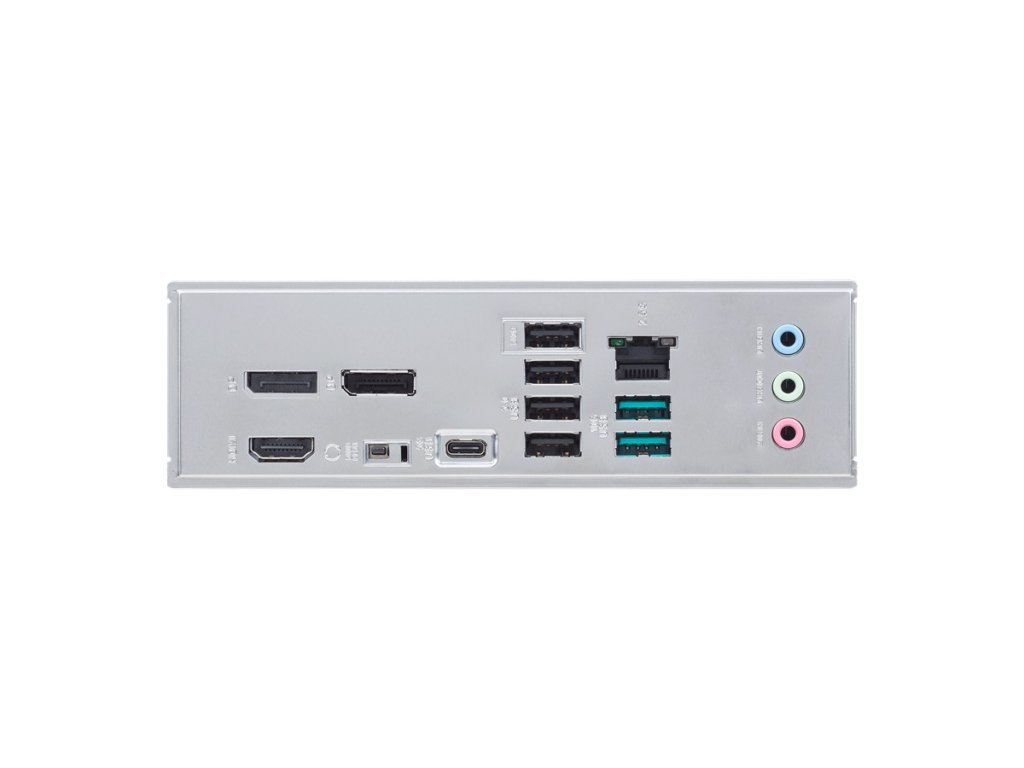

Vstupy/výstupy zadního panelu:
*2 x USB 10Gbps ports (2 x Type-A)
*1 x USB 5Gbps port (1 x USB Type-C®)
*4 x USB 2.0 ports (4 x Type-A)
*2 x DisplayPort
*1 x HDMI™ port
*1 x Realtek 2.5Gb Ethernet port
*3 x Audio jacks
*1 x BIOS FlashBack™ button

Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*2 x 4-pin Chassis Fan headers

Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector

Úložiště:
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports


USB:
*1 x USB 5Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports

Různé:
*3 x Addressable Gen 2 headers
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1 pin)
*1 x 10-1 pin Front System Panel header

Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x M.2 rubber package
*3 x Screw packages for M.2 SSD
Dokumenty:
*1 x Quick start guide
