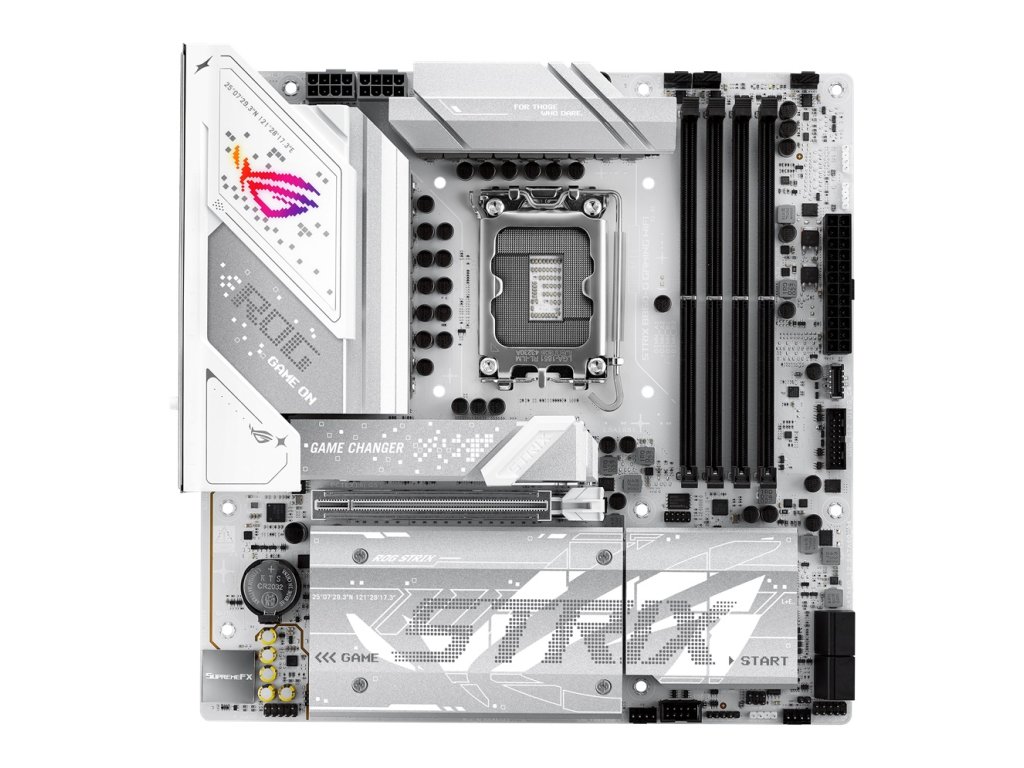

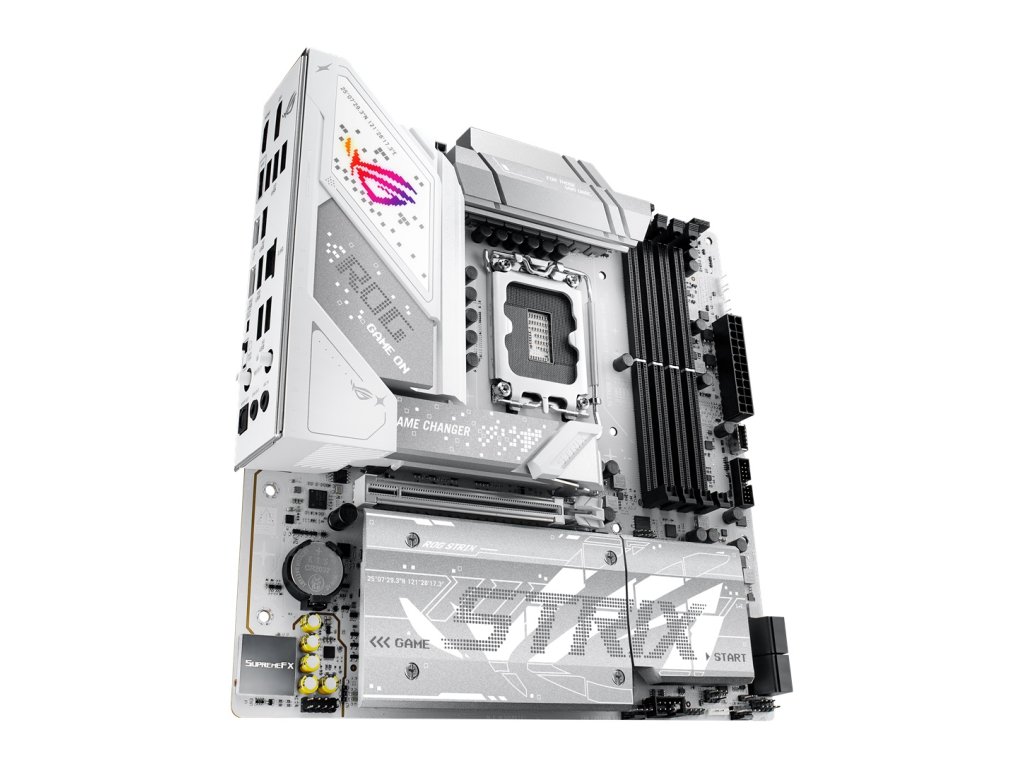

ASUS ROG STRIX B860-G GAMING WIFI

Podrobný popis

ASUS ROG STRIX B860-G GAMING WIFI

* mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
*Dvoukanálová paměťová architektura
*Podpora paměťového modulu Intel® Extreme Memory Profile (XMP)
*ASUS Enhanced Memory Profile III(AEMPIII)

Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port
*1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs

Rozšiřující sloty:
Intel® Core™ Ultra Processors(series 2)
*1 x PCIe 5.0 x16 slot

Úložný prostor:
Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors(series 2)
*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
*M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4)
*M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)
*M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4)
*4 x SATA 6Gb/s ports

Ethernet:
*1 x Intel® 2.5Gb Ethernet

Připojení a Bluetooth:
*Wi-Fi 7
*2x2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band
*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
*Bluetooth® v5.4

USB:
Zadní USB (Total 7 ports)
*1 x Thunderbolt™ 4 port (1 x USB Type-C®)
*1 x USB 20Gbps port(s) (1 x USB Type-C®)
*1 x USB 10Gbps port(s) (1 x Type-A)
*3 x USB 5Gbps port(s) (3 x Type-A)
*4 x USB 2.0 port(s) (4 x Type-A)

Přední USB (Total 7 ports)
*1 x USB 10Gbps connector
*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
*2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports

Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
*SupremeFX Shielding Technology
*Savitech SV3H712 AMP
*Rear optical S/PDIF out port
*Premium audio capacitors
*Audio cover

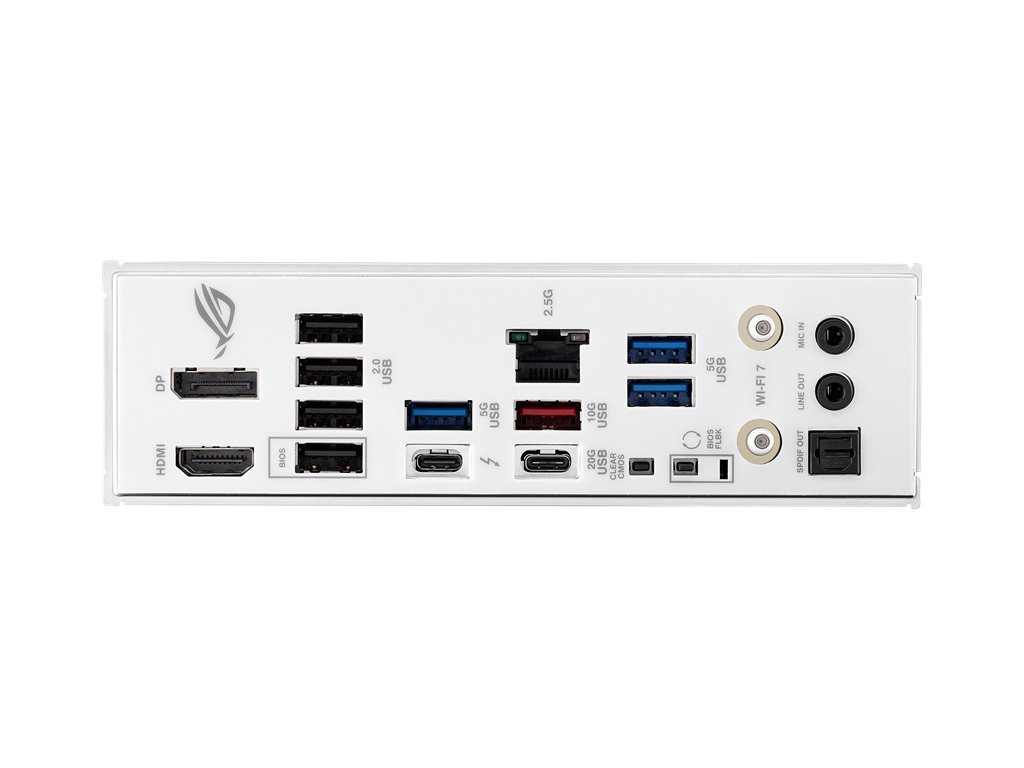

Vstupy/výstupy zadního panelu:
*1 x Thunderbolt™ 4 USB Type-C® port(s)
*1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode)
*1 x USB 10Gbps port(s) (1 x Type-A)
*3 x USB 5Gbps port(s) (3 x Type-A)
*4 x USB 2.0 port(s) (4 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Intel® 2.5Gb Ethernet port
*2 x Audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack™ button
*1 x Clear CMOS button

Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header(s)
*1 x 4-pin CPU OPT Fan header(s)
*1 x 4-pin AIO Pump header(s)
*2 x 4-pin Chassis Fan header(s)
Napájení:
*1 x 24-pin Main Power connector
*2 x 8-pin +12V CPU Power connector
Úložiště:
*4 x M.2 slots (Key M)
*1 x M.2 Vertical slot (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 10Gbps connector (support(s) USB Type-C® )
*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
*2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports
Různé:
*3 x Addressable Gen 2 header(s)
*1 x Front Panel Audio header (F_AUDIO)
*1 x 10-1 pin Front System Panel header
*1 x Thermal Sensor header

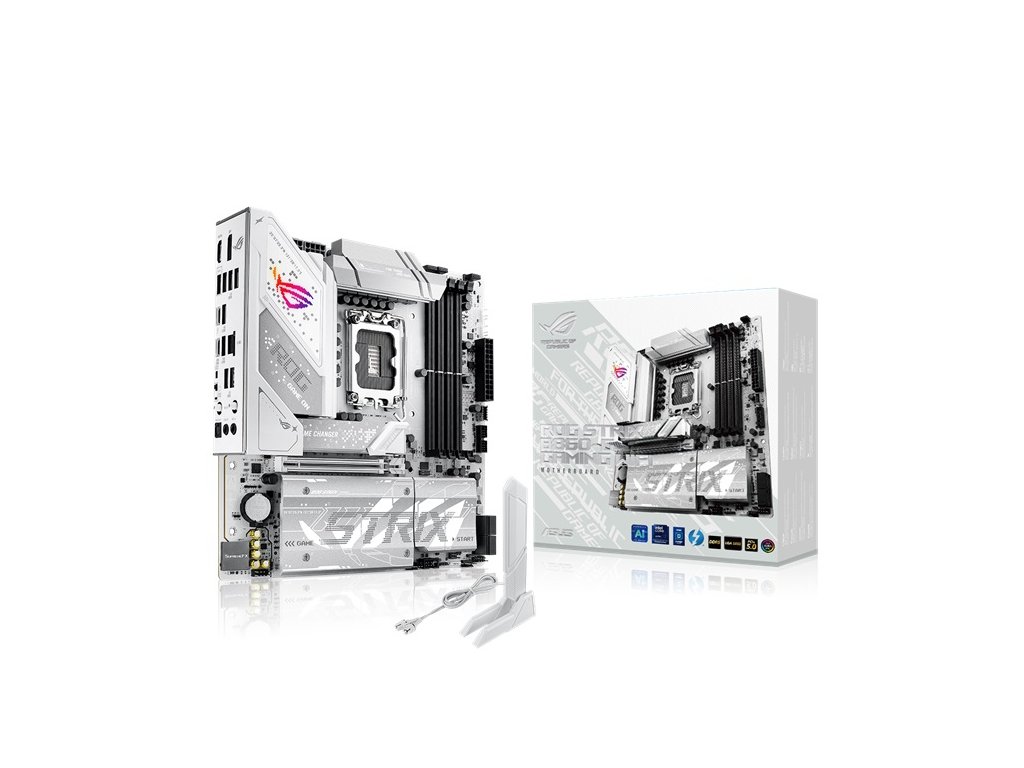

Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*1 x Cable ties package
*1 x M.2 Q-Latch package(s)
*1 x M.2 Q-Slide package
*1 x ROG key chain
*1 x ROG Strix sticker
*3 x M.2 rubber package(s)
*1 x M.2 backplate rubber package(s)
Dokumenty:
*1 x Quick start guide
