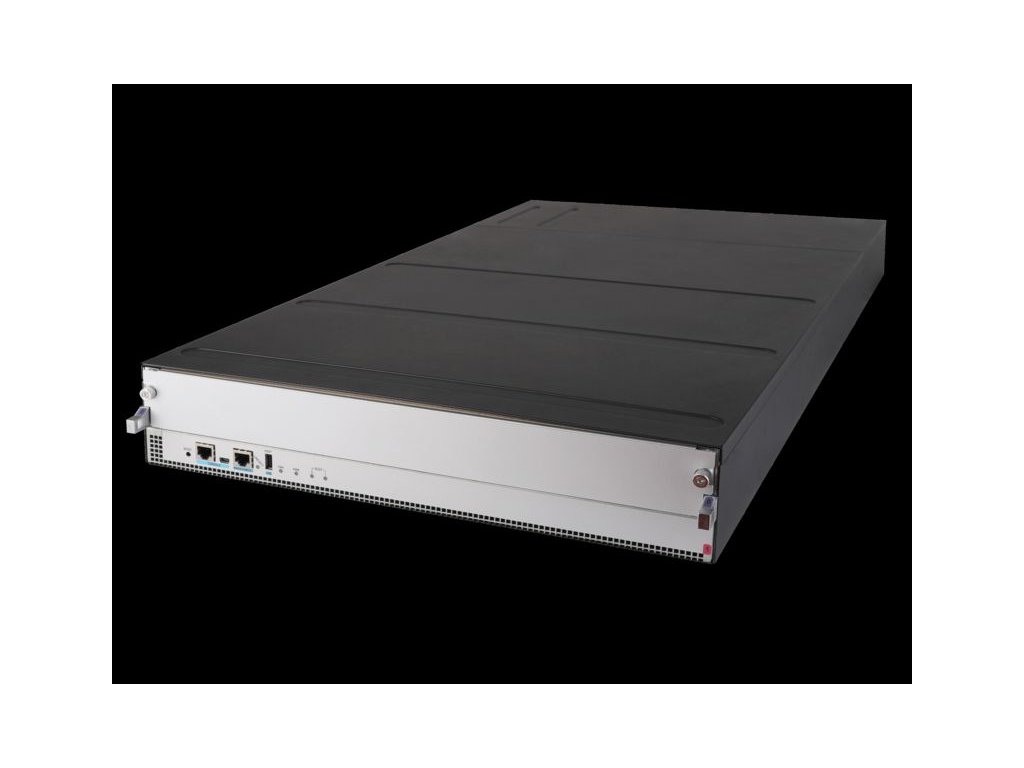

HPE 12901E Switch Chassis

Podrobný popis

Differentiator

2-slot horizontal chassis, 2U, with 1 MPU slot and 1 I/O slot
Ports

specifikace:

Supports a maximum of 48 100GbE, 40GbE or 10GbE ports or a combination

Memory and processor

Quad Core MIPS64 @ 1.2GHz, 1 GB flash, 16 GB DDR3 SDRAM

Throughput

up to 5.8 Bpps

Switching capacity

9.6 Tbps

Stacking capabilities

IRF

2 switches

Management features

IMC - Intelligent Management Center
Command-line interface
Out-of-band management (serial RS-232C)
SNMP manager
Telnet
Terminal interface (serial RS-232C)
Modem interface
IEEE 802.3 Ethernet MIB
Ethernet interface MIB
Input voltage

odkaz na stránky výrobce:

https://www.hpe.com/us/en/product-catalog/networking/networking-switches/pip.specifications.hpe-flexfabric-12901e-switch-chassis.1010419979.html


100 - 240 VAC, rated
-48 to -60 VDC, rated (depending on power supply chosen)
Product dimensions (H x W x D)

3.4 x 17.32 x 33.7 in

Weight

77.2. lb
