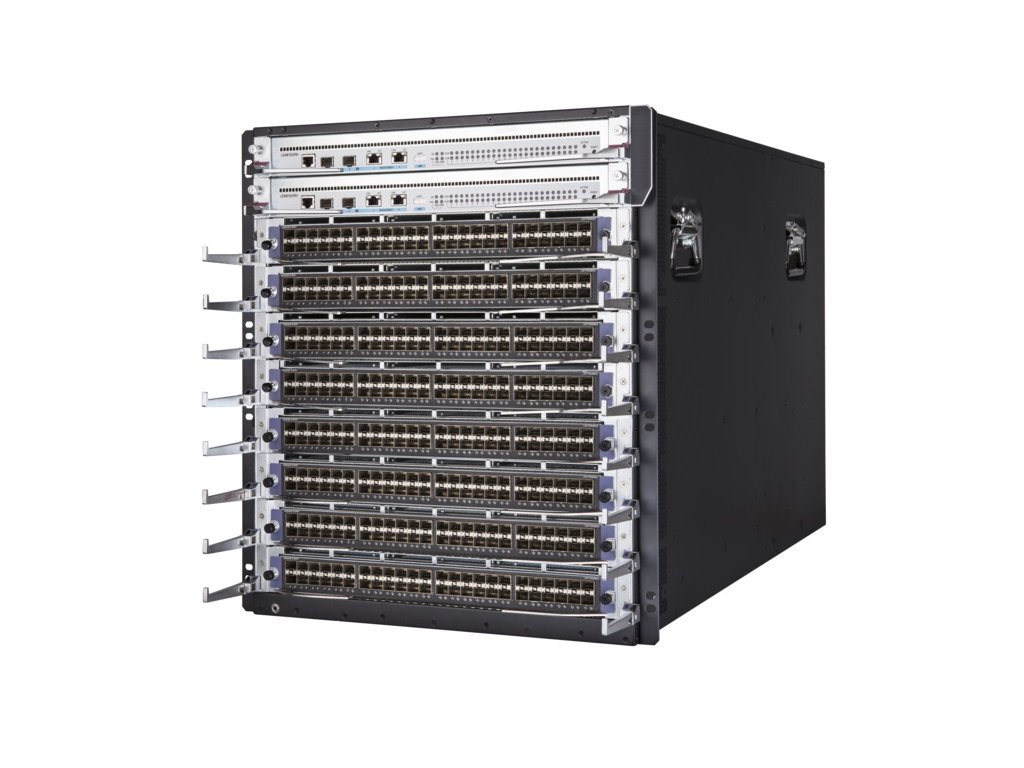

HPE FlexFabric 12908E Switch Chassis

The HPE FlexFabric 12900E Switch Series is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density GbE, 10GbE, 40GbE and 100GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE FlexFabric 12900E Switch supports a full Layer 2 and 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times

Differentiator


16-slot horizontal chassis, 12U, with 2 MPU slots, 6 switch fabric slots and 8 I/O slots

Ports

(8) I/O module slots
Supports a maximum of 384 10GbE ports or 384 1/10GBASE-T ports or 384 1/10GbE ports or 384 Gigabit Ethernet ports or 384 autosensing 10/100/1000 ports or 384 40GbE ports or 288 100GbE ports, or a combination

Memory and processor

Quad Core MIPS64 @ 1.2 GHz
1 GB flash
8 GB DDR3 SDRAM

Throughput

up to 46.0 Bpps

Switching capacity

92.0 Tbps

Stacking capabilities

IRF
2 switches

Management features

IMC - Intelligent Management Center
Command-line interface
Out-of-band management (serial RS-232C)
SNMP manager
Telnet
Terminal interface (serial RS-232C)
Modem interface
IEEE 802.3 Ethernet MIB
Ethernet interface MIB

Input voltage

100 - 240 VAC, rated
-48 to -60 VDC, rated (depending on power supply chosen)

Product dimensions (H x W x D)

17.32 x 33.74 x 20.91 in

Weight

103.62 lb
