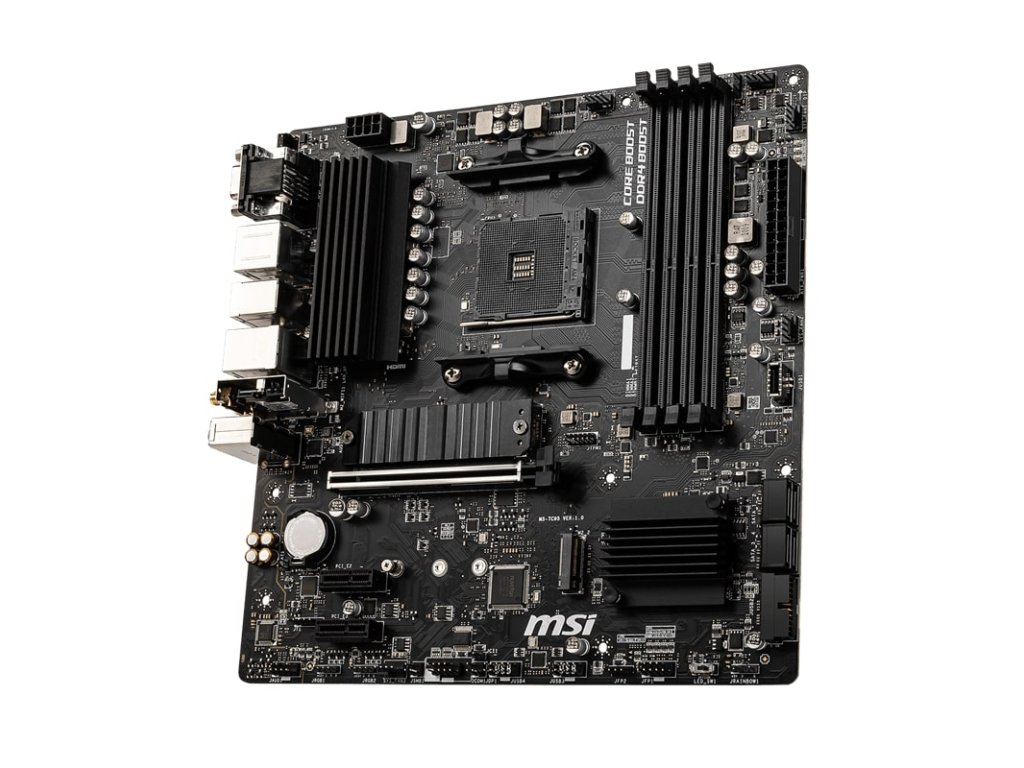

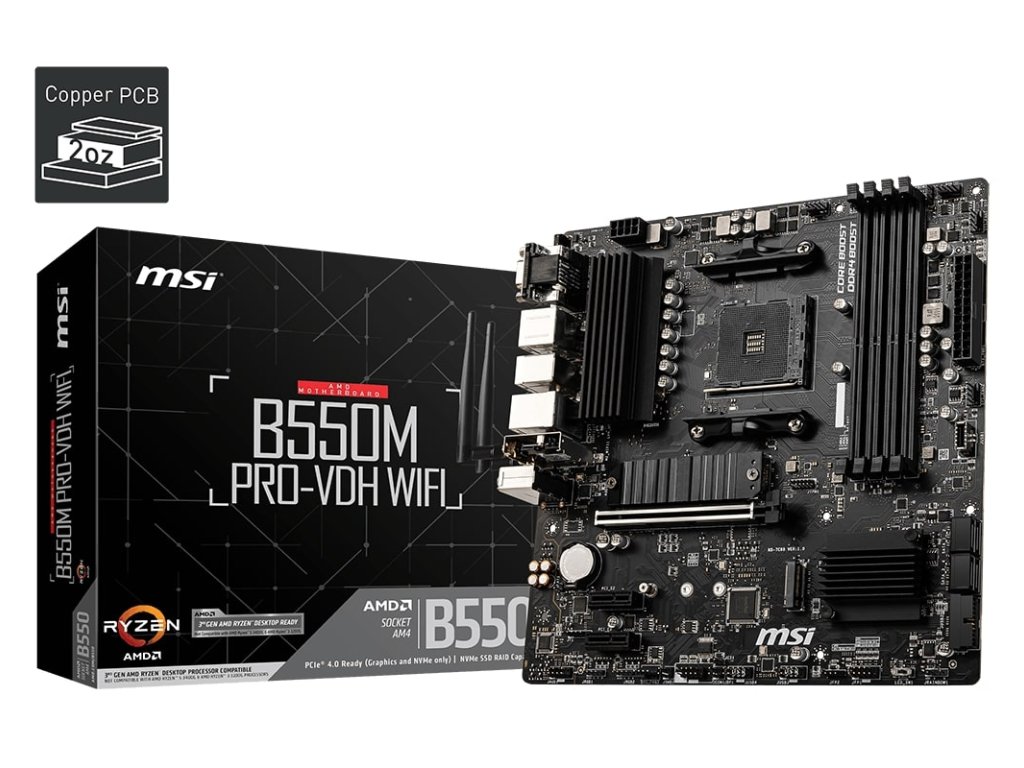

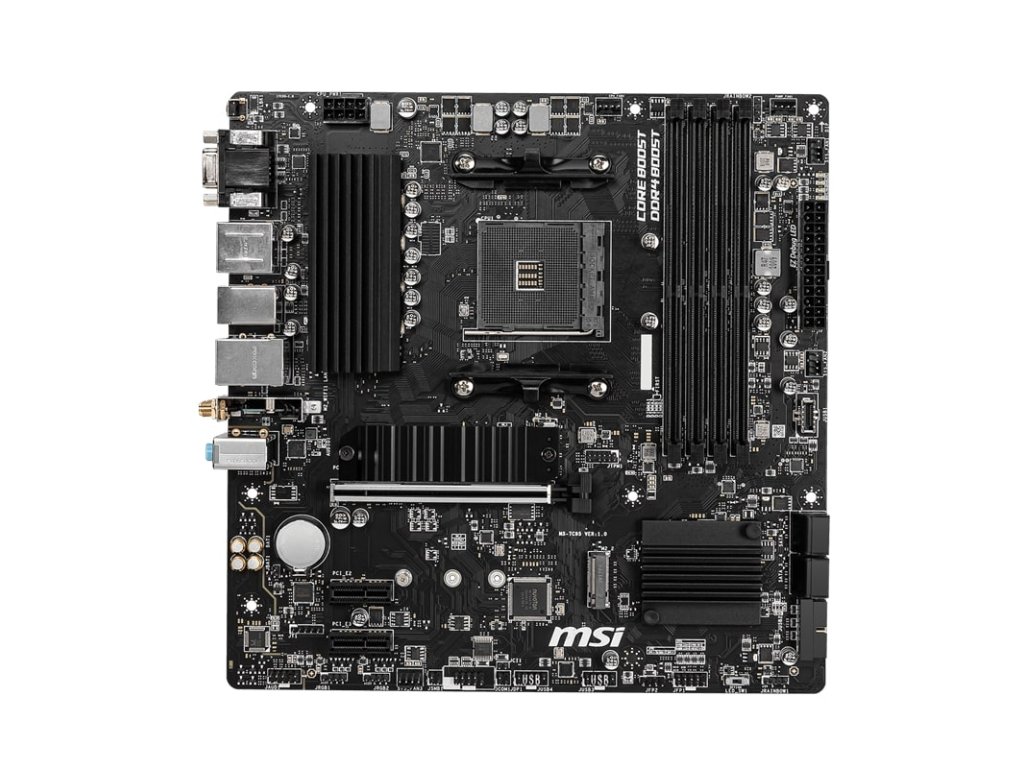

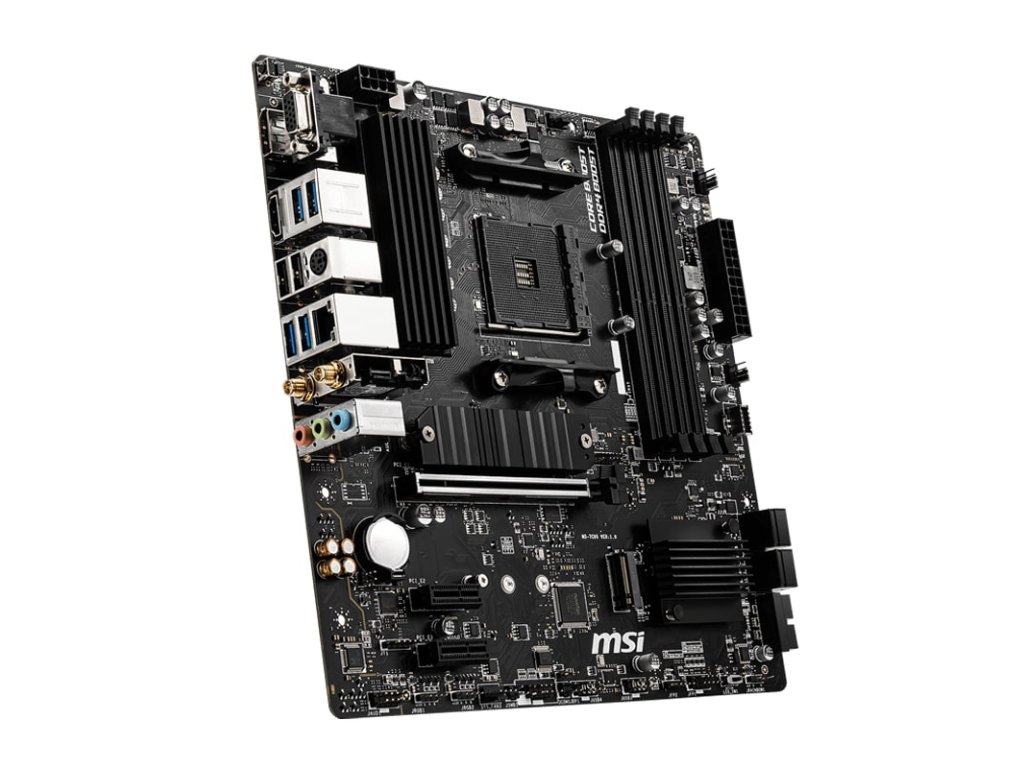

MSI B550M PRO-VDH WIFI/AM4/mATX

Podrobný popis

Chipset: AMD B550

Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru: AM4

Pozice na paměti: 4x DDR4
Podpora pro paměti:
*Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
*Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
*Dual channel memory architecture
*Supports non-ECC UDIMM memory
*Supports ECC UDIMM memory
*Supports un-buffered memory

Grafické výstupy: na základě procesoru
*1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
*1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
*1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

Zvuková karta:
*Realtek® ALC892 Codec

Síťová karta:
*1x Realtek® 8111HN Gigabit LAN controller
*Intel® Wireless-AC 3168
*Bluetooth 4.2


RAID řadič:
*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozšiřující sloty:
*1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
*2x PCIe 3.0 x1 slots

SATA:
*4x SATA 6Gb/s ports

M.2:
*2x M.2 slots (Key M)

USB:
*zadní USB porty ( celkem 6 )
*2x USB 2.0 ports
*4x USB 3.2 Gen 1 5Gbps Type-A ports
*přední USB porty ( celkem 7 )
*1x USB 3.2 Gen 1 5Gbps Type-C port
*2x USB 3.2 Gen 1 5Gbps ports
*4x USB 2.0 ports

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*4x SATA 6Gb/s connectors
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 1 5Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*3x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Serial port connector
*1x Chassis Intrusion connector
*2x 4-pin RGB LED connectors
*2x 3-pin RAINBOW LED connectors
*1x TPM module connector
*1x Clear CMOS jumper

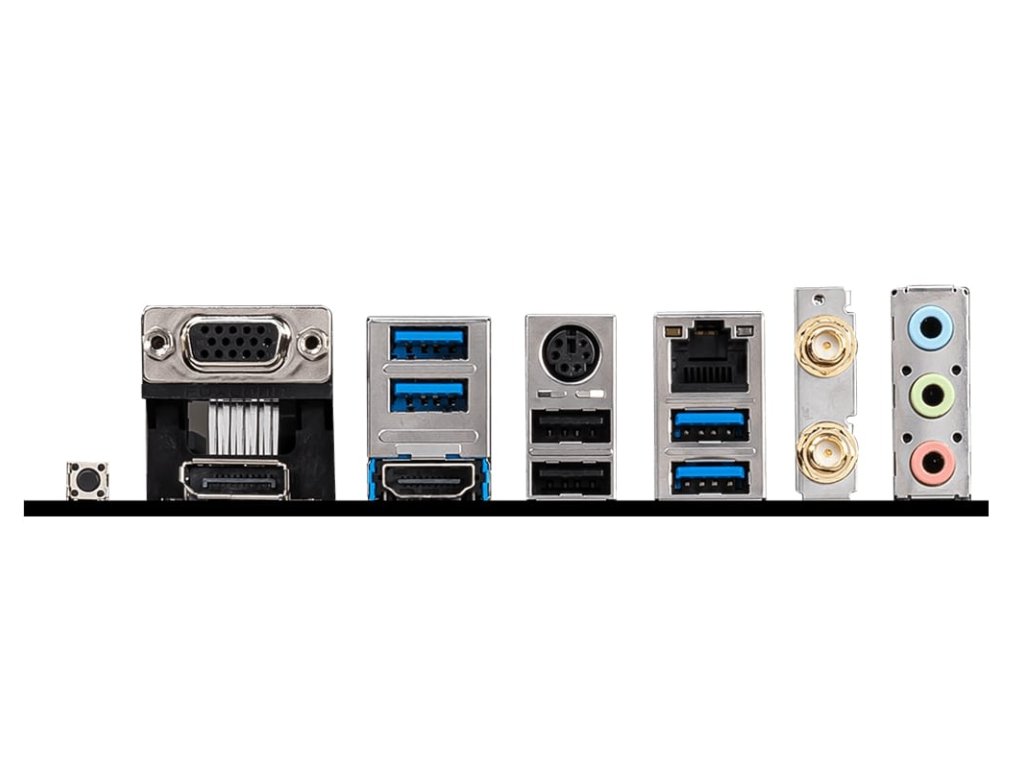

Externí porty:
*VGA
*PS/2 Keyboard / Mouse
*1x LAN
*Flash BIOS Button
*DisplayPort
*HDMI
*2x USB 2.0
*4x USB 3.2 Gen 1 5Gbps Type-A
*Wi-Fi Antenna connectors
*3x Audio jacks

Stránka výrobce: https://www.msi.com/Motherboard/B550M-PRO-VDH-WIFI
