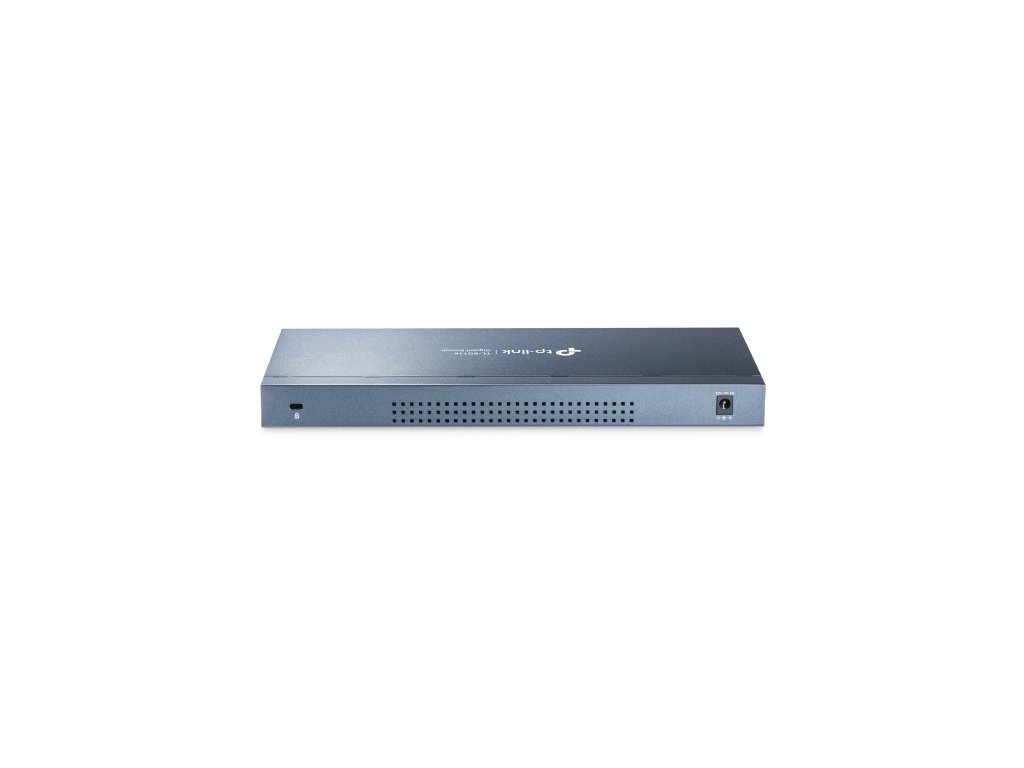

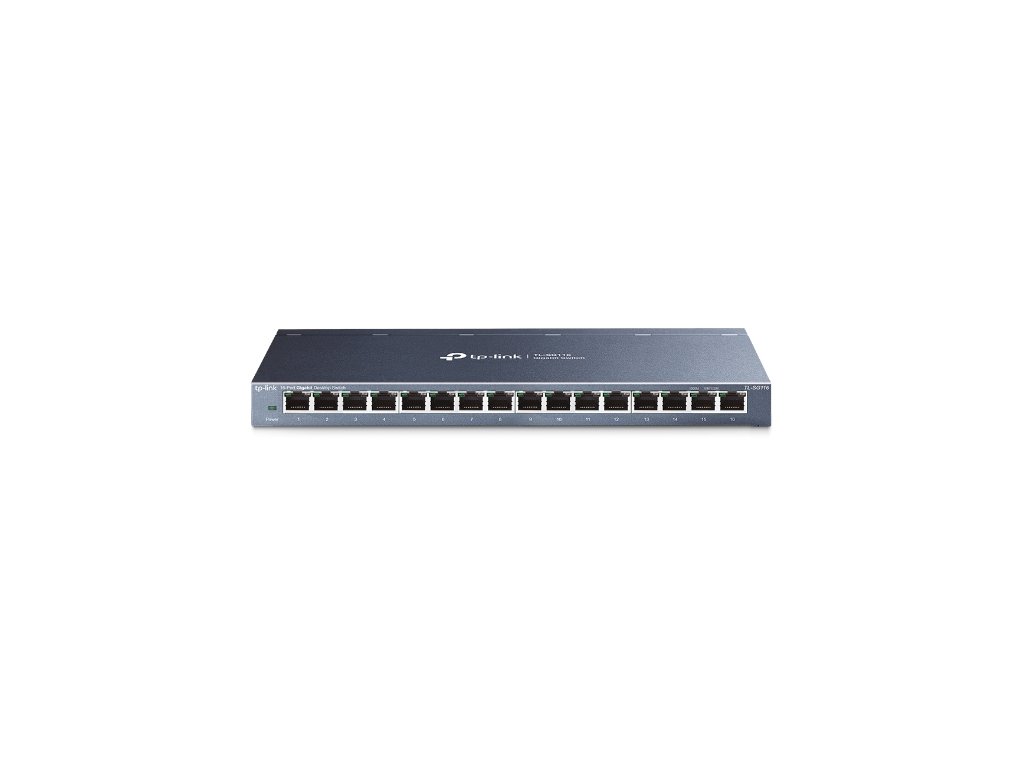

TP-Link TL-SG116 16xGb steel desktop switch

Podrobný popis

TL-SG116 16-Port Gigabit Desktop Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface: 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator:
*System Power
*Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ): 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
Max Power Consumption: 10W(220V/50Hz)
Max Heat Dissipation: 34.12BTU/h

PERFORMANCE
Packet Forwarding Rate: 23.8Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 10KB

SOFTWARE FEATURES
Advanced Features:
*Green Technology
*802.3X Flow Control
*802.1p/DSCP QoS
*IGMP Snooping
Transfer Method: Store and Forward

OTHERS
Certification: CE, FCC ,RoHS
Package Contents:
*16-Port 10/100/1000Mbps Desktop Switch
*Power Adapter
*Installation Guide
*Rubber Feet
Environment:
*Operating Temperature: 0°C~40°C (32°F~104°F)
*Storage Temperature: -40°C~70°C (-40°F~158°F)
*Operating Humidity: 10% ~ 90%, non-condensing
*Storage Humidity: 5%~90% non-condensing
