VIGI NVR1008H-8P 8 Channel PoE Network Video Rec.

Podrobný popis

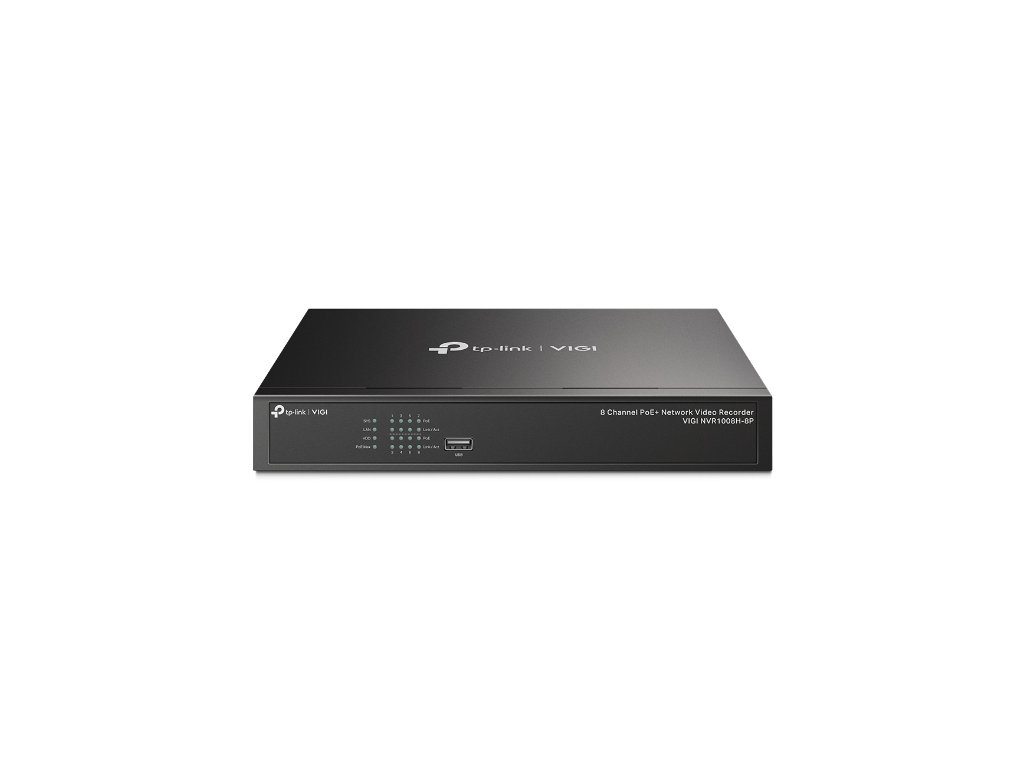

VIGI NVR1008H-8P

---

Shows more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels.

Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.

Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.

With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

---

Features
*4K HDMI Video Output & 16MP Decoding Capacity
*Simplified Deployment with PoE+
*8-Channel Simultaneous Playback
*H.265+
*ONVIF Ensures Compatibility
*Plug & Play
*24/7 Continuous Recording
*Remote Monitoring
*Flexible Installation
*Two-Way Audio

---

Specifications
NETWORK
Protocol
*TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith
*80 Mbps
Outgoing Bandwidth
*60 Mbps
GENERAL
Package Contents
*VIGI Network Video Recorder
*Power Adapter
*HDD Screws
*Mouse
*Quick Installation Guide
Operating Temperature
*-10–55 °C
Dimensions( W X D X H )
*294 × 180 × 44 mm
PoE
*Standard: 802.3af/at
*PoE Ports: Ports 1-8
*PoE Budget: 53 W
External Power Supply
*53.5V DC/1.31 A
Power Consumption
*2.38 W (without disk)
*12.94 W (with disk)
VIDEO/IMAGE
Video Input
*8-Channel IP Video Input, up to 8 MP Resolution
Recording Resolution
*8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output Resolution
*1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
*1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution
*1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
*1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,
DECODING
Decoding Format
*H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution
*8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
*8 Channel
Capability
*2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
HARD DISK
SATA
*1 SATA Interface
Capacity
*Up to 10 TB
INTERFACES
Network Interface
*1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface
*2× USB 2.0
